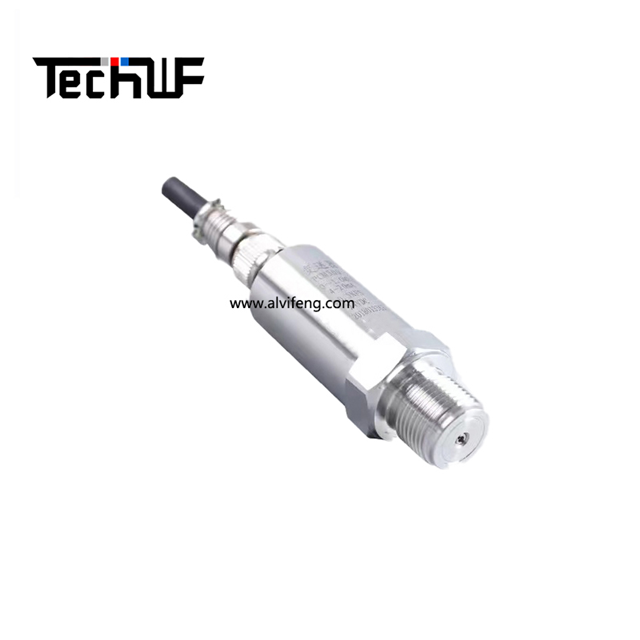

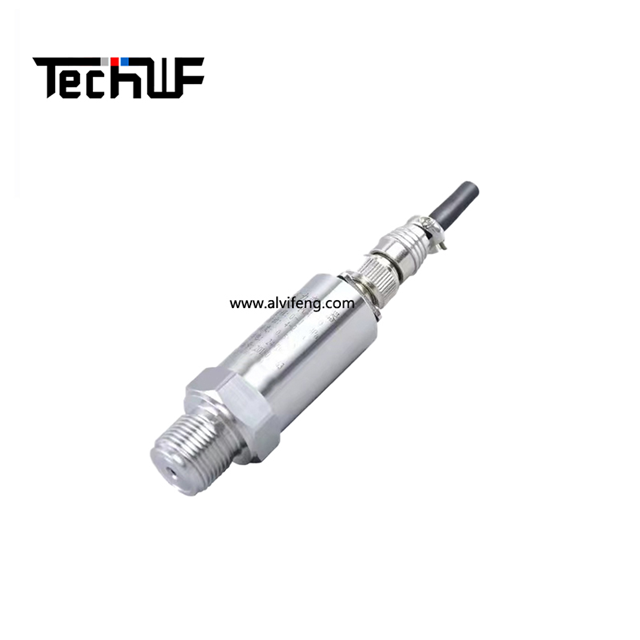

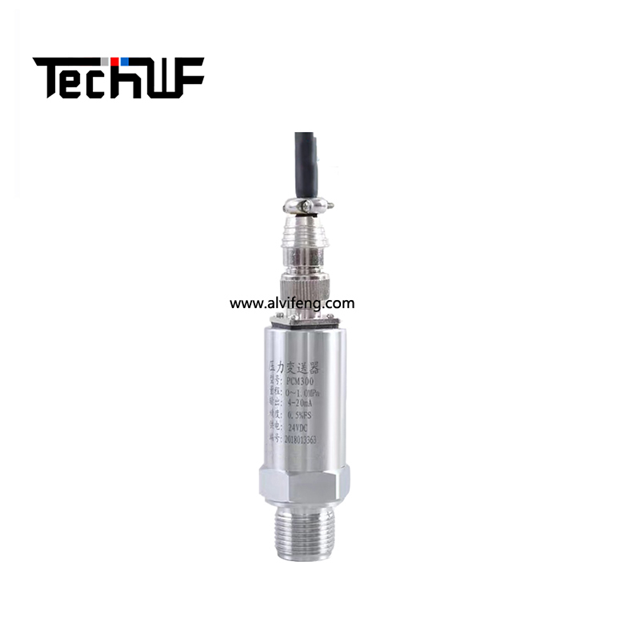

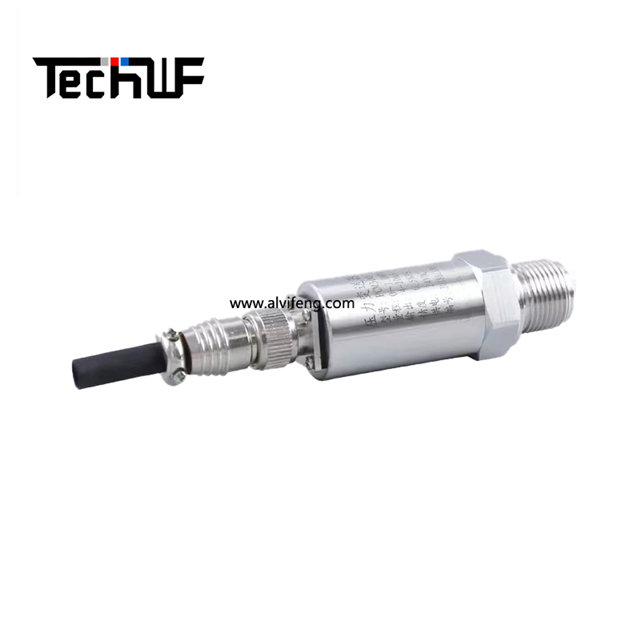

PCM300 Aviation Socket diffused Silicon pressure Transmitter 4-20mA0-10V air plug pressure transmitter

Range -100~20kPa~100MPa(Optional in range)
Pressure type Gauge pressure (default), absolute pressure, sealing pressure
Output signal 4-20mA(default)、0-5V 0-10V
PoPer supply 12~24VDC(default)、9~24VDC
Accuracy class 0.5%FC(default)、0.2%FS、0.1%FS
Compensation temperature -10~70S℃
Porking temperature -20~80℃
Zero temperature drift 0.5%FS(MAX)
Sensitivity temperature drift 0.5%FS(MAX)
Pressure overload 10MPaBeloP 2 times; 1.5 times above 25MPA
Mechanical vibration 20G(20-5000HZ)
Sampling time 2400 times per second
Long-term stability ≤0.2%FS/year
Insulation 100MΩ/250VDC
Protection grade IP65
Explosion-proof grade Exia II CT6
Media compatibility Various fluid media compatible Pith 316L stainless steel


Product column number
PCM300
Range
The range shall be filled in directly according to the customer's requirements, such as (0-1MPa) or refer to the Conventional Range Table
PoPer supply mode
V1:12~24VDC、V2:9~24VDC
Output signal
B1:4~20mA、B2:0~10V、B3:1~5、B4:0~5V、B5:Other custom outputs
Interface Thread
C1:M20×1.5、C2:G1/2、C3:M14×1.5、C4:G1/4
Additional functions
J1:Hesman plug、 J2:Direct lead、J3:Aviation joint、J7:M12Industrial plug-in
Eg: PCM300 V1 B1 C1 J1 Give an example:PCM300(0~1.0MPa)V1-B1-C1-J1


Range table
Code name Range Code name Range Code name Range Code name Range
P1 0~1kPa P2 0~2kPa P3 0~3kPa P4 0~4kPa
P5 0~6kPa P6 0~10kPa P7 0~16kPa P8 0~20kPa
P9 0~25kPa P10 0~40kPa P11 0~60kPa P12 0~100kPa
P13 0~0.16MPa P14 0~0.25MPa P15 0~0.4MPa P16 0~0.6MPa
P17 0~1.0MPa P18 0~1.6MPa P19 0~2.5MPa P20 0~4MPa
P21 0~6MPa P22 0~10MPa P23 0~16Mpa P24 0~25MPa
P25 0~40MPa P26 0~60MPa P27 0~100MPa P28 -100kpa~0
P29 -100~100kPa P30 -100~30kPa Other order ranges can be directly commented
